83mm

- STAINLESS STEEL

Kontakt

STAINLESS STEEL

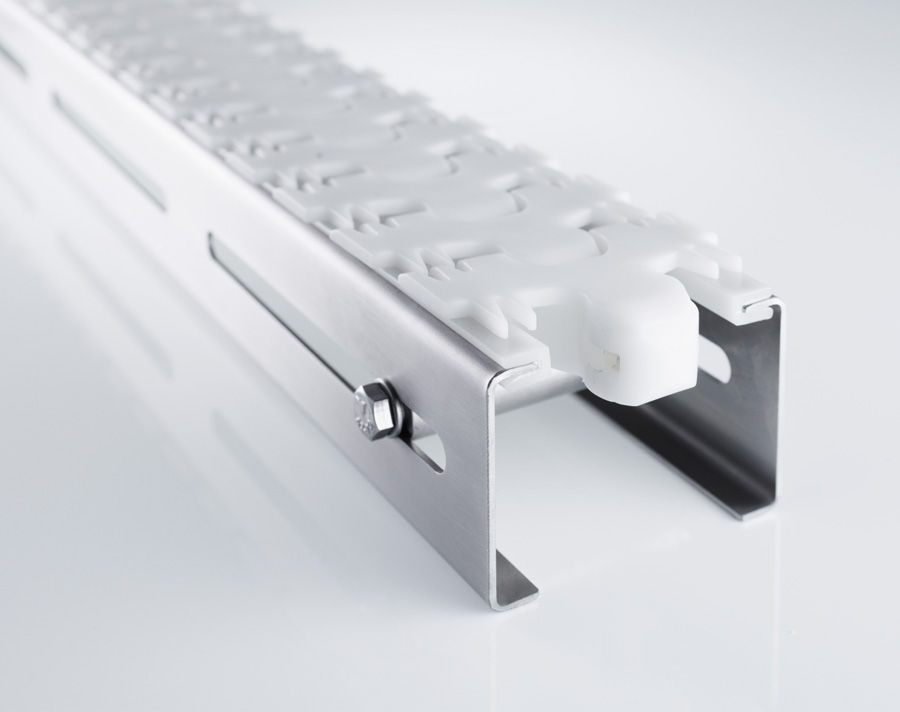

This system is suitable for a broad variety of products of diverse nature and size. The chain consists of a conveyor base with individually configurable chain attachments which can be accurately customised to your requirements.

Technical characteristics

Beam width 86 mm
Chain width 83 mm
Chain partition 38 mm
Minimum radius 150 mm
Max. item weight (horizontal) 15 kg
Max. item weight (vertikal) 10 kg
Max. transport weight 80 kg
Max. conveyor length 30 m
Max. recommended speed approx. 50 m/min
Operating temperature -20° C bis +60° C
Noise level < 70 dB (A)
